The eye is frequently involved in numerous autoimmune and rheumatologic disorders. In part one of this four-part study guide, we discuss rheumatoid arthritis, Sjögren's syndrome, and seronegative spondyloarthropathies.
Autoimmune Rheumatologic Disorders and the Eye: Study Guide

Introduction

Autoimmune diseases have a variety of systemic manifestations; the eye is frequently involved in numerous autoimmune and rheumatologic disorders. Ocular manifestations are frequently nonspecific and different diseases may affect different parts of the eye, but early recognition of symptoms can help avoid or delay both systemic and ocular sequelae.
The most common autoimmune diseases that affect the eyes can be separated into four categories:
  1. Rheumatologic
  2. Dermatologic
  3. Endocrine
  4. Vascular
This is part one of a four-part series in which we discuss autoimmune rheumatologic diseases and the eye including:
  1. Rheumatoid arthritis
  2. Sjögren's syndrome
  3. Seronegative spondyloarthropathies

Rheumatoid arthritis 1-5

Rheumatoid arthritis - epidemiology

  • Disease
    • Incidence in USA:40 per 100,000 persons
    • Prevalence
      • .024-1% of population
    • 2:1 (women: men)
    • Age: 30-50
  • Eye manifestations
    • 27.2% of patients with RA

Rheumatoid arthritis - mechanism

  • Vasculitis
    • Vascular occlusion
    • Infiltration
    • Fibrinoid necrosis
  • Immune complex deposition
  • Complement activation
  • Autoantibodies
  • Secretion of collagenases by macrophages and neutrophils
  • Cytokine production

Rheumatoid arthritis - presentation

  • General
    • Symmetrical inflammatory polyarthritis
      • Joint deformities
      • Nodules (Proximal interphalangeal joints (PIP)>Distal interphalangeal joints (DIP))
    • Constitutional symptoms
    • Joint stiffness
    • Fever
    • Weight loss
  • Anterior segment more commonly affected than posterior segment

Rheumatoid arthritis presenting with keratoconjunctivitis sicca (most common)

  • Mechanism
    • Dysfunction of
      • Meibomian gland
      • Lacrimal gland
      • Accessory lacrimal gland
      • Goblet cells
  • Characteristics
    • Foreign body sensation
    • Burning
    • Decreased visual acuity
    • Photophobia
    • Pruritis
  • Complications
    • Superficial punctate keratitis
    • Filamentary keratitis
    • Corneal ulcer
    • Corneal melt
  • Diagnosis
    • 25% meet criteria for secondary Sjögren's Syndrome (SS)
    • Schirmer’s Test
      • < 5mm tear extension
    • Tear break up time
      • < 5 seconds
    • Decreased lacrimal lake
    • Staining
      • Fluorescein
      • Rose Bengal
      • Lissamine green
  • Treatment
    • Lubricating drops/ointment
    • Topical cyclosporine
    • Oral pilocarpine
    • Topical Lifitegrast
    • Punctal occlusion
    • Amniotic membrane
    • Tarsorrhaphy

Rheumatoid arthritis presenting with episcleritis

  • Mechanism
    • Inflammation of episclera
  • Characteristics
    • 40% bilateral
    • Salmon-pink eyes
    • Mild pain
    • Occurs in a sectoral or radial distribution
  • Diagnosis
    • Clinical
Below, in Figure 1, you will find an image of a patient with episcleritis.
https://covalentcareers3.s3.amazonaws.com/media/original_images/Episcleritis_.jpeg
Figure 1: episcleritis
  • Treatment
    • Self-limiting
    • Symptom relief
      • Topical corticosteroids
      • Oral NSAID

Rheumatoid arthritis presenting with scleritis

  • Mechanism
    • Inflammation of sclera
    • Vasodilation of superficial and deep episcleral vessels
  • Characteristics
    • Most common cause of scleritis
    • Can present before onset of joint symptoms
    • Bilateral in 40-50% of patients
    • Anterior Scleritis
Figure 2 shows a non-necrotizing scleritis.
https://covalentcareers3.s3.amazonaws.com/media/original_images/non-necrotizing_scleritis_.jpeg
Figure 2: non-necrotizing scleritis
  • Pain made worse with eye movement
  • Blurry vision
  • Photophobia
  • Tearing
  • Posterior Scleritis
    • T-sign on B-scan

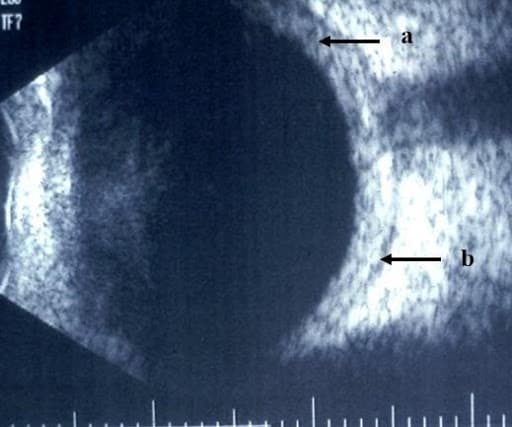

In Figure 3, you will find an example of T-sign with fluid in Tenon space on B-scan
https://covalentcareers3.s3.amazonaws.com/media/original_images/T-sign_with_fluid.jpeg
Figure 3: T-sign with fluid in Tenon space on B-scan
  • Complication
    • Retinal detachment
    • Chorioretinal folds
  • Scleromalacia Perforans
Figure 4 demonstrates scleromalacia perforans.
https://covalentcareers3.s3.amazonaws.com/media/original_images/Scleromalacia_Perforans.jpeg
Figure 4: scleromalacia perforans
  • Severe anterior necrotizing scleritis without inflammation
  • Painless
  • Complications
    • Visual loss
    • Astigmatism
    • Globe perforation
  • Treatment
    • Topical therapy ineffective
    • Need to manage systemic RA
    • Medications
      • Oral NSAID
      • Corticosteroids
      • Methotrexate
      • Azathioprine
      • Mycophenolate mofetil
      • Cyclosporine
      • Biologics (infliximab, adalimumab, rituximab, anakinra)
      • **Co-management with rheumatologist is essential
    • Necrotizing scleritis
      • Debridement

Rheumatoid arthritis presenting with peripheral ulcerative keratitis (PUK)

  • Mechanism
    • Immune complexes infiltrate vascular arcades in the corneal periphery
  • Characteristics
    • Corneal melt
    • 35% of cases occur secondary to RA
      • Complication of Necrotizing scleritis
    • Stromal thinning
    • Secondary overlying epithelial defect
    • Neovascularization of corneal periphery
    • Crescent shaped juxta-limbal ulcers
    • Symptoms
      • Pain
      • Photophobia
      • Tearing
      • ↓ visual acuity (induced irregular astigmatism, corneal opacity)
    • Complications
      • Corneal perforation
  • Treatment
    • Topical therapy usually ineffective as a cure
    • Need to manage systemic RA
      • Systemic corticosteroids best
    • Ocular support
      • Topical medroxyprogesterone
      • Topical acetylcysteine
      • Oral tetracycline
      • Amniotic membrane or corneal glue in some cases
  • Diagnosis
    • Common Lab Findings
      • ↑ Rheumatoid factor
      • ↑ HLA-DR4
      • ↑ Anti-cyclic citrullinated antibody (most specific)
      • ↑ Cytokine Th17
      • ↑ CRP
      • ↑ ESR
  • Management
    • As above, based on effected segment of eye

Sjögren's syndrome1,6-13

Sjögren's syndrome - epidemiology

  • Disease
    • Incidence: 7 per 100,000 person-years
      • Female::male: 9-14::1
    • Prevalence: 42 per 100,000
      • Female::male: 9::1
    • Age (Average)
      • 56

Sjögren's syndrome - mechanism

  • Chronic autoimmune inflammation characterized by diminished lacrimal and salivary gland function

Sjogren's syndrome - presentation

  • General Disease
    • Dry eye
    • Dry mouth
    • Constitutional symptoms
  • Ocular
    • Dry eye
    • Burning
    • Sandy-gritty sensation
    • Ocular irritation, fatigue
    • Pain
    • Fluctuating blurry vision
    • Pressure sensation behind the eye
  • Severity
    • Mild
      • Dry eye
    • Moderate
      • Variable corneal or conjunctival staining
      • Mild debris in the tear film
      • ↓ tear breakup time
      • ↑ tear osmolarity
      • Abnormal Schirmer test (below 5mm)
    • Severe
      • Severe punctate corneal erosions
      • Filamentary keratitis
      • Significant conjunctival vital dye staining
      • Low Schirmer levels (may be 0mm)
      • Significantly ↑ tear osmolarity

Sjögren's syndrome - diagnosis

ACR/EULAR Classification Criteria for Primary Sjögren's Syndrome

ItemWeight/Score
Labial salivary gland with focal lymphocytic sialadenitis and focus score => 1 foci/mm23
Anti-Ro/SSA positive 3
Ocular staining score => 5 (or van Bijsterveld score =>4) in at least one eye 1
Schirmer test => 5 mm/5 minutes in at least one eye 1
Unstimulated whole saliva flow rate <= 0.1 mL/minute 1
📚

Sign Up To Keep Reading

Grab the remaining study guide notes on Sjogren syndrome and seronegative arthropathies by signing up for free!
